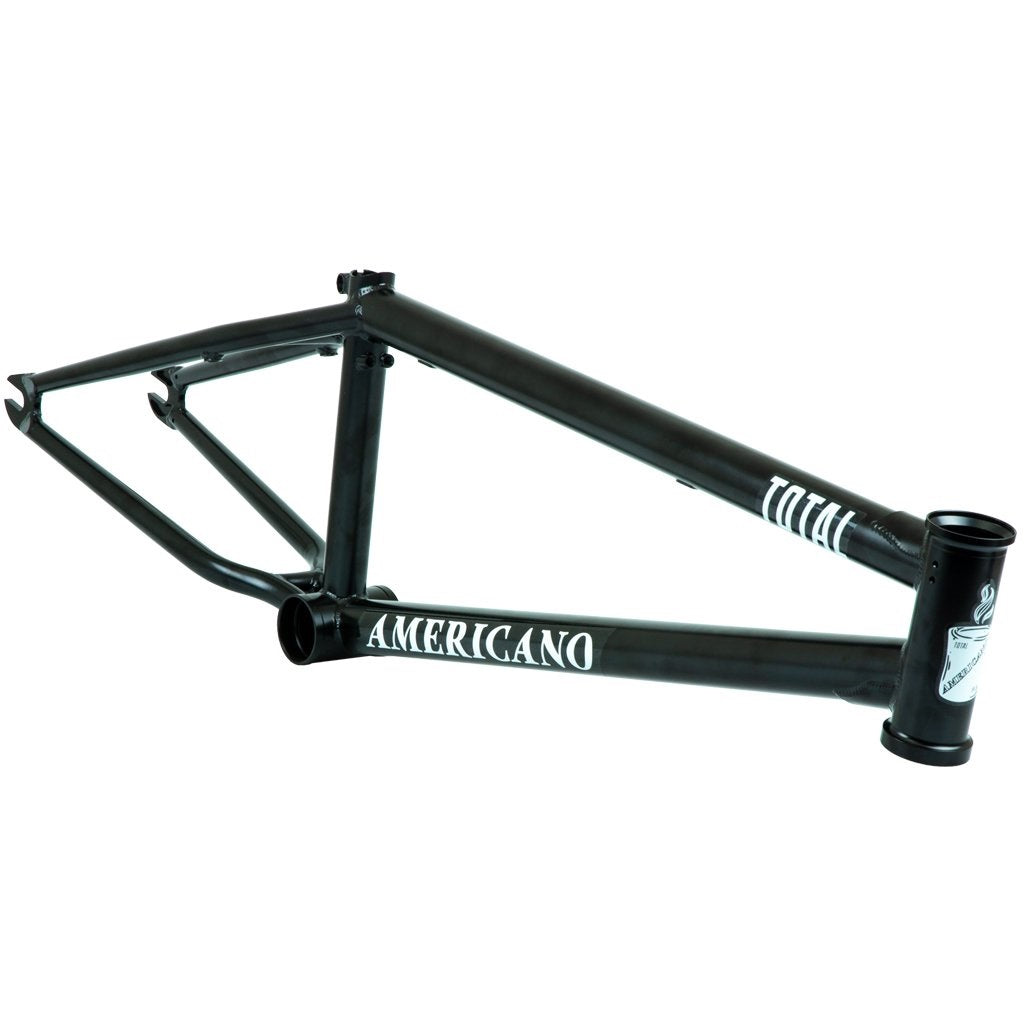

Total BMX Americano Frame - ED Black

Total Americano Frame - ED Black

Nick Bruce signature

Built for a rider who always goes that bit bigger than everyone else on the park course, the Americano is strong yet light enough to be ridden in a technical but burly style. Together with Nick, Total have worked hard to get the frame to ride well and be durable, adding the 'DBS' brake mod which works a treat and simplifies the lower brake cables of a gyro, originally designed by team mate Mark Webb but refined by their product designer for the production model. Due to the routing of the DBS system through the seat tube, a short seat post must be used to ensure the cables aren't fouled.

Weight

2.14kg/ 4lbs 11oz

Spec

4130 Chromoly Steel
75.1° head tube angle
71° seat tube angle
8.25" standover
13.3" chainstays (slammed)
11.5" bottom bracket height

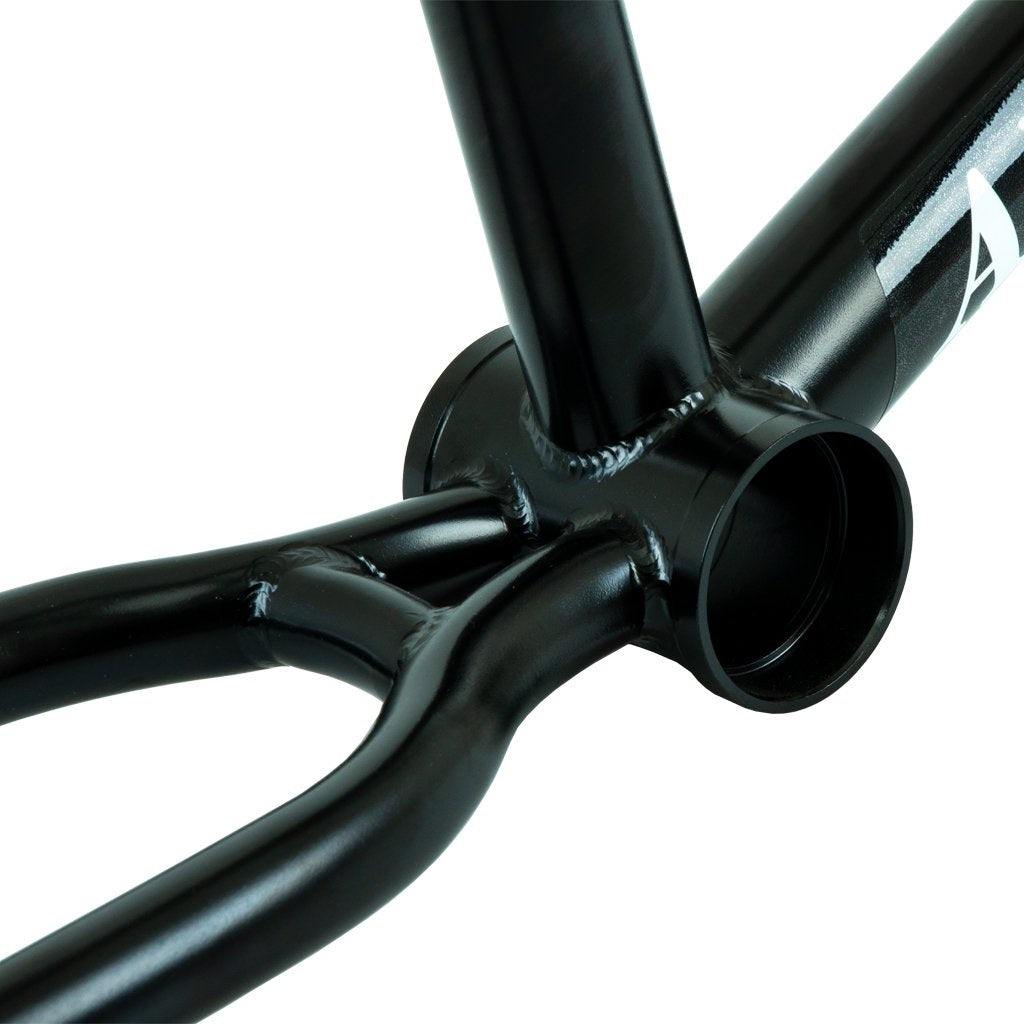

Top tube and down tube gussets

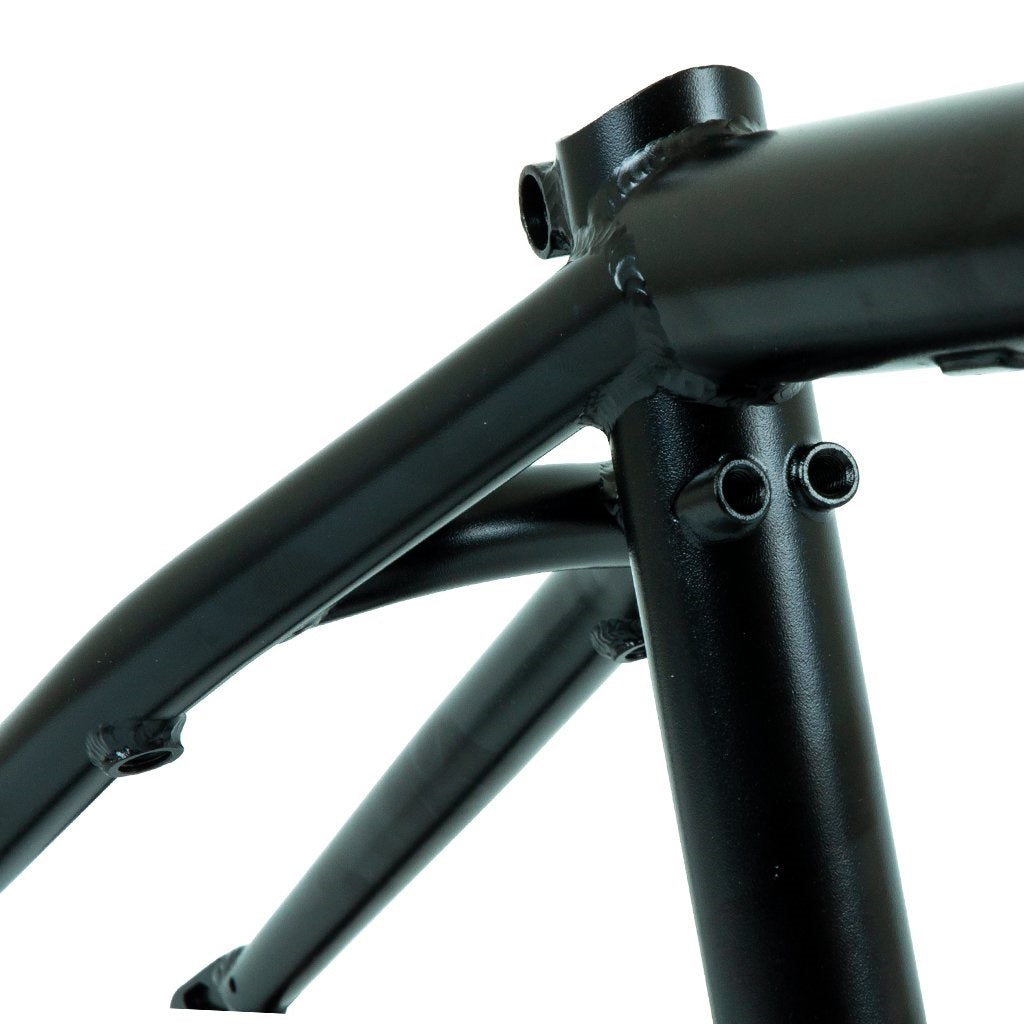

DBS cable routing
Supplied with threaded removable brake mounts

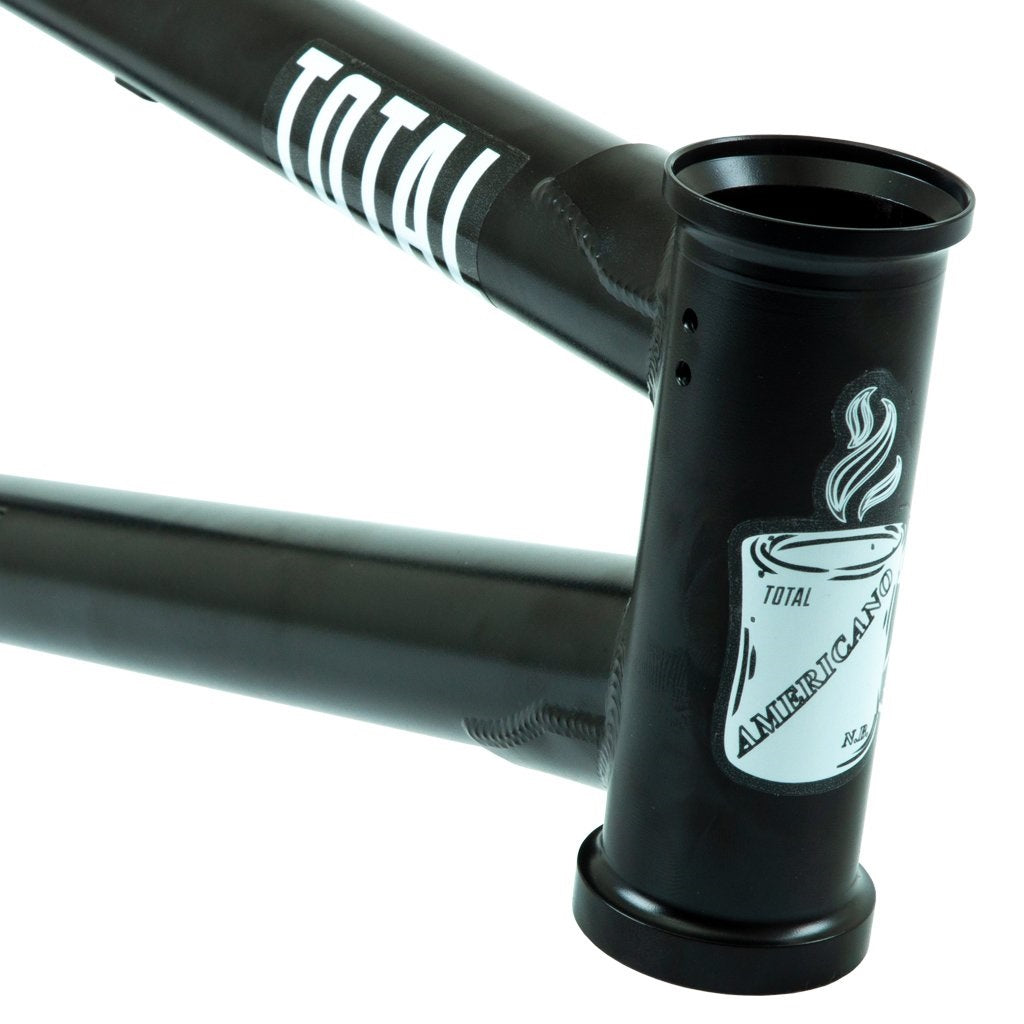

Headtube tapped for Gyro tabs

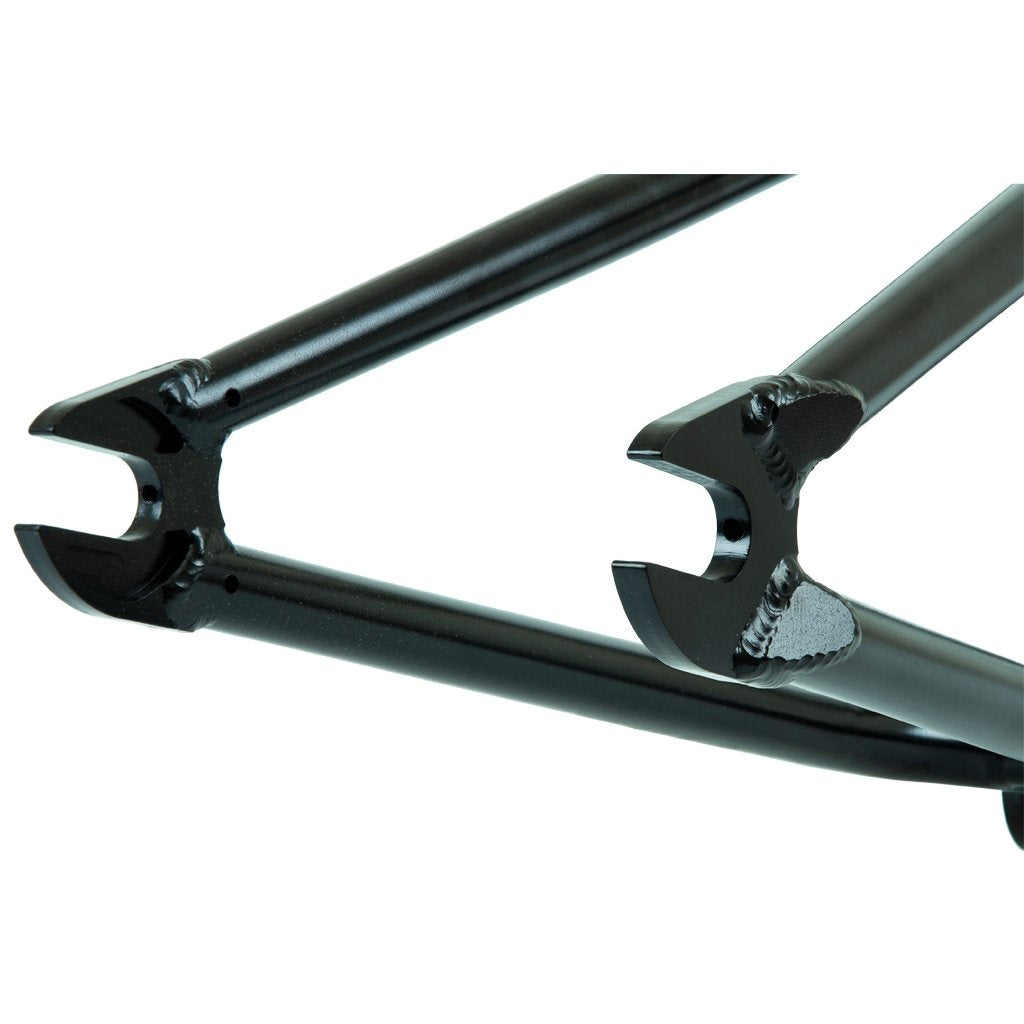

6mm thick CNC'd dropouts with integrated chain tensioners
Top tube sizes: 20.5"/ 20.75"/ 21”
